All-Prime Pumps
Built to beat clogging, priming delays, and costly repairs.
In industries where uptime is non-negotiable — mining, wastewater treatment, food processing, and manufacturing — pump failures caused by clogging, unreliable priming, and inaccessible maintenance lead to costly shutdowns and operational inefficiencies.
Flowstar is your Canadian resource for All-Prime Pumps, offering self-priming, solids-handling pump systems that solve these exact challenges. Facilities across Newfoundland and Labrador, New Brunswick, and Nova Scotia are reporting improved performance, reduced maintenance costs, and greater reliability with All-Prime’s engineered solutions.
Common Problems All-Prime Pumps Solve
Facing clogs, priming issues, or costly maintenance? All-Prime Pumps are built to fix that.
Select the issue you are facing and discover a solution:
Clogs Shouldn't be a Daily Maintenance Task
XS-Series: Designed to Handle Real-World Solids Without Constant Intervention
Whether you’re dealing with sludge, pulp, sediment, or food waste, the All-Prime XS-Series pumps are engineered to keep your fluids moving:
Features include:
- Handles up to 3-inch diameter solids without clogging
- Semi-open impellers with pump-out vanes reduce buildup
- Quick-access clean-out covers let you clear blockages fast — no piping disconnection required
These anti-clogging features can benefit wastewater systems in the the industrial and municipal sectors .

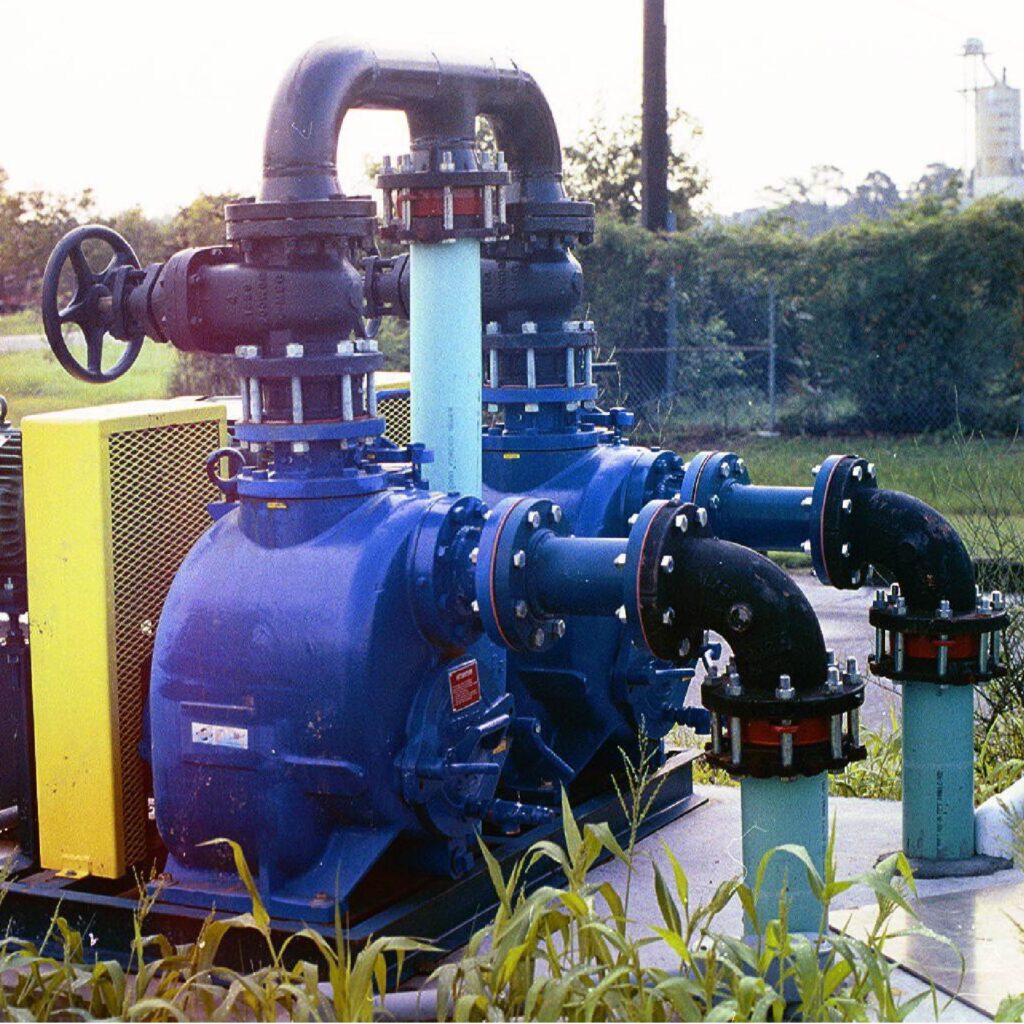

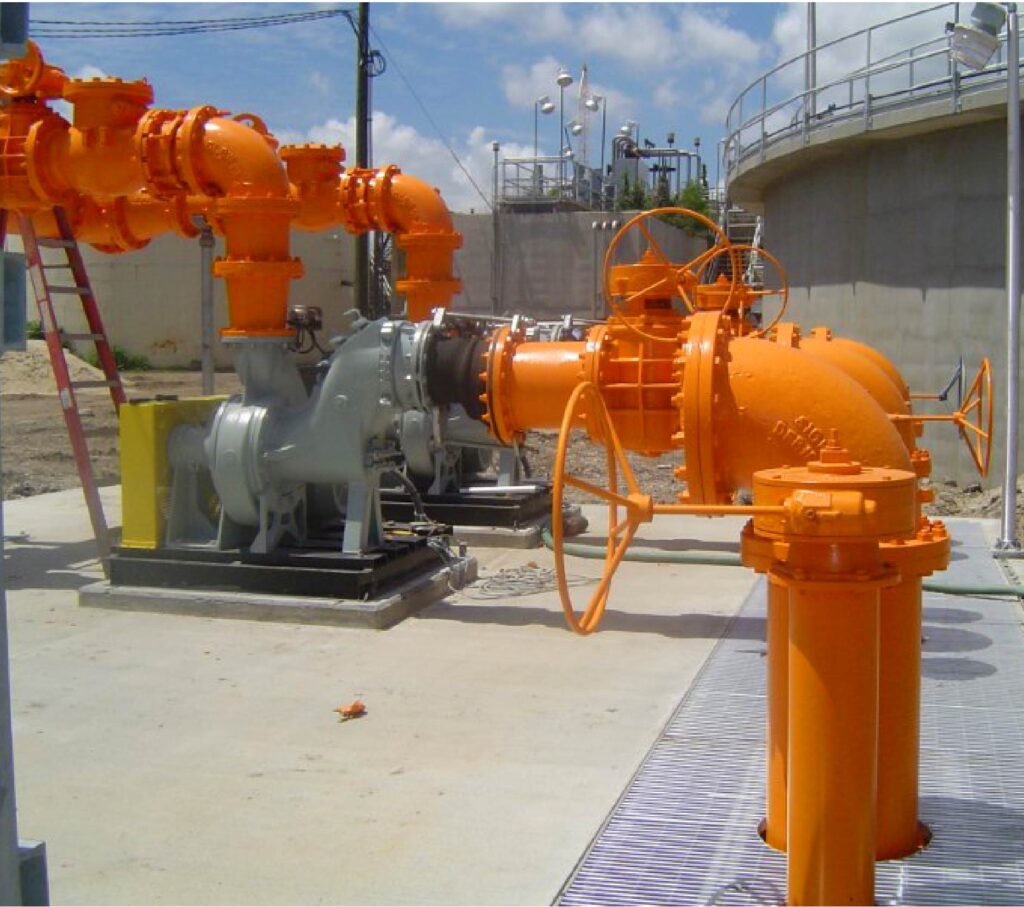

All-Prime XS Series Pump
Priming Shouldn’t Be a Guessing Game
The S-Series: Reliable Self-Priming That Works — Even After Shutdowns
If your current pump needs a vacuum system or foot valve just to start, you’re wasting time and risking failure. The All-Prime S-Series simplifies startup:
- Self-primes up to 25 feet suction lift
- No foot valves required
- Volute retains liquid for dry suction re-priming
- Suction flapper check valve speeds priming and improves reliability
This means no confined space entry, fewer restart delays, and less troubleshooting.

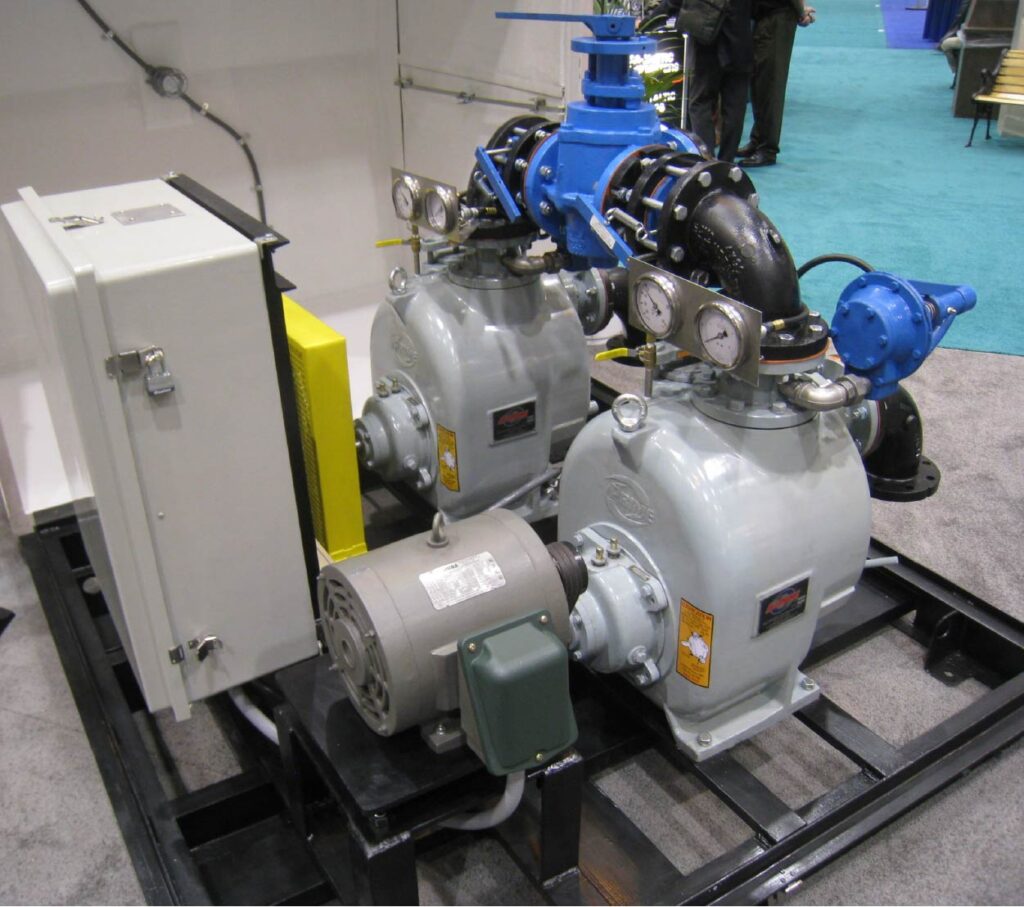

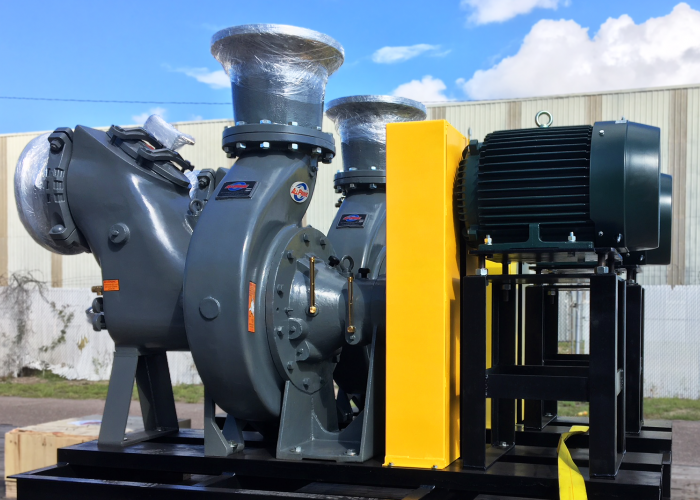

All-Prime S-Series Pump
View All Prime's Anti Clogging Pump Products
XS-Series
S-Series
I-Series
Maintenance Shouldn’t Require a Full System Shutdown
All-Prime XS, S, and I -Series Pumps: Service-Friendly Design That Keeps Your Team in Control
All-Prime pumps are built with accessibility in mind, so your team can handle maintenance without calling in outside help or halting operations:
- Back pull-out rotating assemblies — no need to disturb piping
- External impeller adjustment — optimize performance without disassembly
- Removable suction covers — change wear parts quickly
- Interchangeable parts with other leading brands simplify inventory and upgrades
This means no confined space entry, fewer restart delays, and less troubleshooting.

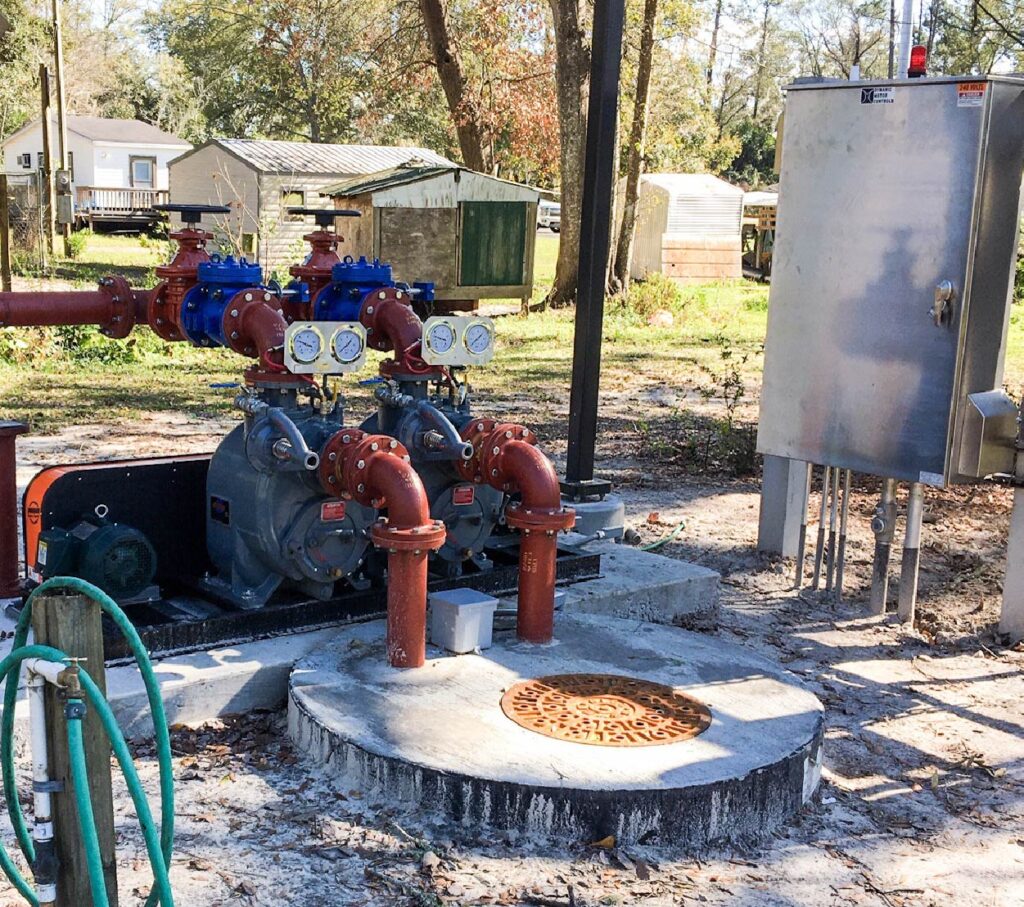

All-Prime I-Series Pump
All-Prime Pump Products
XS-Series

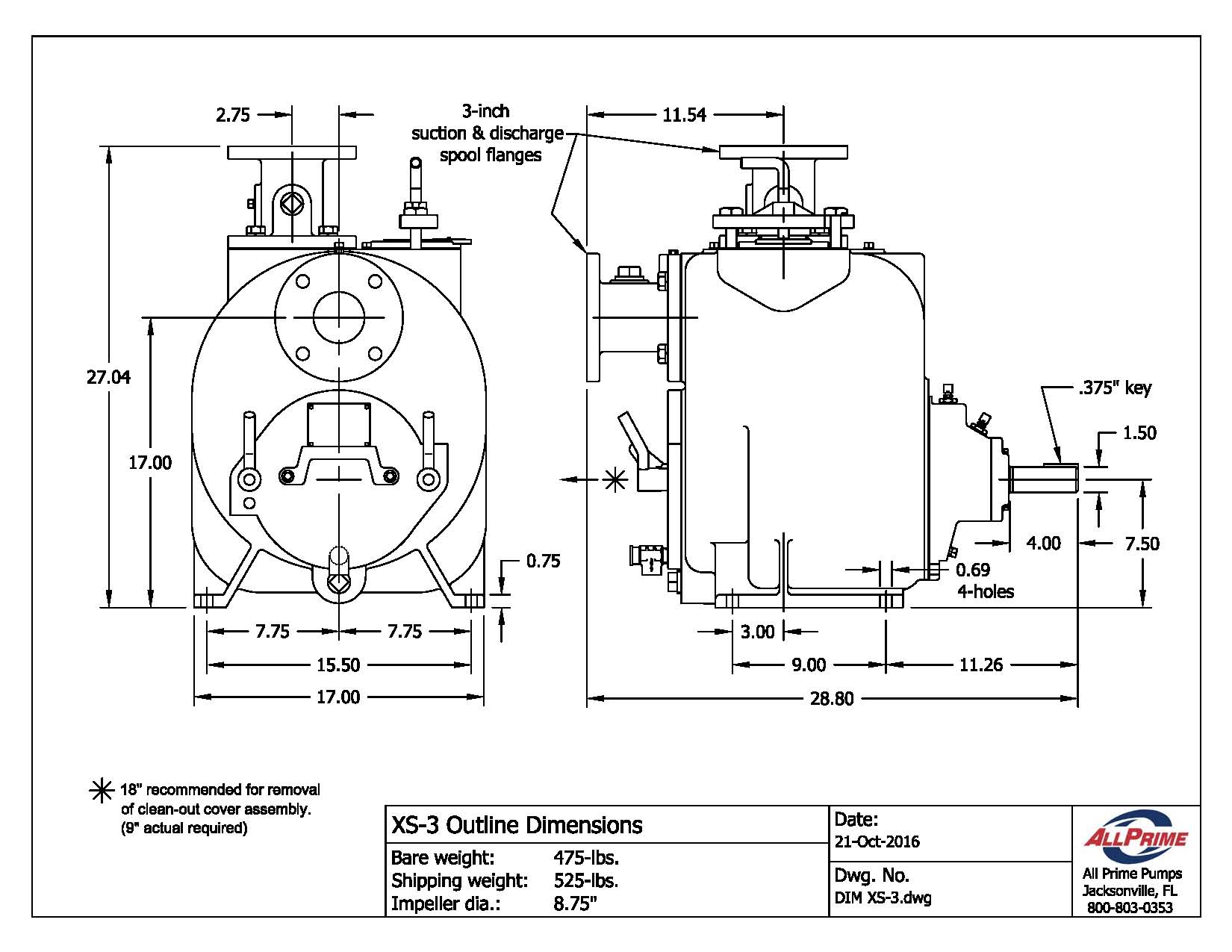

Heavy-Duty Solids Handling for High-Volume Systems
The XS-Series is engineered to move large volumes of sludge, pulp, and debris without clogging. Its rugged impeller design and clean-out access points make it ideal for facilities where clogging leads to costly shutdowns.
Features:
- Available in 3″, 4″, 6″, 8″, 10″, and 12″ sizes
- Handles up to 3-inch diameter spherical solids
- Flow rates up to 5,000 GPM with heads up to 130 feet
- Two-vane impellers with pump-out vanes reduce seal pressure and buildup
- External shimless impeller adjustment and removable clean-out covers for fast service
Ideal for: Steel mills, paper mills, wastewater treatment, and mining operations
S-Series
Versatile Performance with Broad Material Options
The S-Series simplifies startup with true self-priming capability, eliminating the need for foot valves and vacuum systems. It’s ideal for intermittent operations where reliable priming is critical.
– Sizes from 2″ to 12″ discharge connections
Features:
- Sizes from 2″ to 12″ discharge connections
- Flow ranges from 5 to 20 L/sec and heads from 4 to 42 meters
- Available in cast iron, ADI, stainless steel (304/316), CD4, Hastelloy-C276, and bronze
- Back pull-out rotating assemblies and removable suction covers simplify maintenance
- Self-primes without foot valves — even after dry suction conditions
Ideal for: Food processing, automotive factories, industrial wastewater, and chemical handling
I-Series
High-Efficiency Pumps for Energy-Conscious Operations
The I-Series is designed for easy servicing and long-term reliability. With simplified maintenance procedures and efficient hydraulic design, it reduces labor costs and improves uptime.
Features:
- Sizes from 3″ to 6″ with flow ranges from 6 to 48 L/sec and heads from 10 to 60 meters
- Optimized impeller and volute geometry for improved hydraulic efficiency
- Simplified maintenance procedures for in-house servicing
- Material flexibility for chemical compatibility and corrosive environments
Ideal for: Facilities focused on energy savings, chemical processing, and clean fluid transfer
Answers to Common All-Prime Pump Questions and Performance Issues
Priming issues are often caused by air leaks on the suction side, insufficient liquid in the priming chamber, or blockages in the suction line. Even self-priming pumps require initial priming.
Troubleshooting Tips:
- Inspect all suction line fittings and hoses for air leaks using soapy water
- Ensure the pump casing is fully filled with liquid before startup
- Clear debris from suction strainers, impellers, and check valves
- Verify suction lift is below 25 feet (the practical limit)
- Confirm the suction flapper check valve is functioning properly
- Keep discharge valves open during priming to allow air evacuation
Proper installation ensures optimal performance and easy maintenance access.
Installation Guidelines:
- Maintain at least 18 inches of clearance in front of the back cover plate
- Install pumps above the liquid level for self-priming applications
- Keep suction inlet height below 5 meters (16 feet)
- Ensure level mounting — use shims to eliminate vibration
- Use independent pipe supports to prevent stress on the pump body
- Align pump shaft and motor output coaxially
- Install suction strainers with drainage area 2–3× the suction pipe cross-section
Proper sizing requires understanding your system’s hydraulic and environmental conditions.
Key Factors to Consider:
- Required flow rate and total dynamic head (TDH)
- Solids content and maximum particle size (up to 3-inch spherical solids)
- Suction lift height and available NPSH
- Liquid temperature (max 160°F / 71°C for standard models)
- Chemical compatibility — choose from cast iron, stainless steel, CD4, Hastelloy-C276
- Viscosity and specific gravity of the fluid
Tip: Contact Flowstar with your full application details for expert pump selection and sizing support.
A structured maintenance plan extends pump life and prevents breakdowns.
Daily:
- Check for leaks at mating surfaces and connections
- Listen for unusual noises or vibration
- Monitor bearing and motor temperature
- Verify liquid levels in the priming chamber
Monthly:
- Compare suction/discharge pressures to baseline
- Inspect mechanical seals for wear or leakage
- Check impeller clearance using the external adjustment system
- Tighten bolts and verify coupling alignment
Annually:
- Replace seals, impellers, and wear plates via the suction cover
- Inspect and replace rotating assemblies if worn
- Adjust impeller-to-wear plate clearance
Yes. All-Prime pumps are designed for full interchangeability with several leading brands of solids-handling self-priming pumps.
Benefits:
- Direct replacement without modifying piping
- Simplified inventory using industry-standard dimensions
- Rotating assemblies removable without disturbing piping
- Standard NEMA motor compatibility
- 150# ANSI flange connections for universal fit
This makes All-Prime ideal for upgrading existing installations while maintaining infrastructure.
All-Prime pumps are trusted in industries where solids-handling and reliability are essential:
- Wastewater treatment: sewage, sludge, effluent transfer
- Mining: dewatering, slurry transport, abrasive fluids
- Food processing: sanitary waste, byproduct handling
- Steel & paper mills: pulp slurry, scale pit water
- Automotive: coolant circulation, parts washing
- Construction: site dewatering with solids content
Flowstar provides full support for All-Prime Pumps in Canada, backed by All-Prime’s factory resources.
Support Services Include:
- Application engineering and pump sizing
- Installation guidance and best practices
- Troubleshooting and field service
- Parts identification and sourcing
- Maintenance training and documentation
Contact Flowstar: (902) 896-0082 or email us: sales@flowstarind.ca
